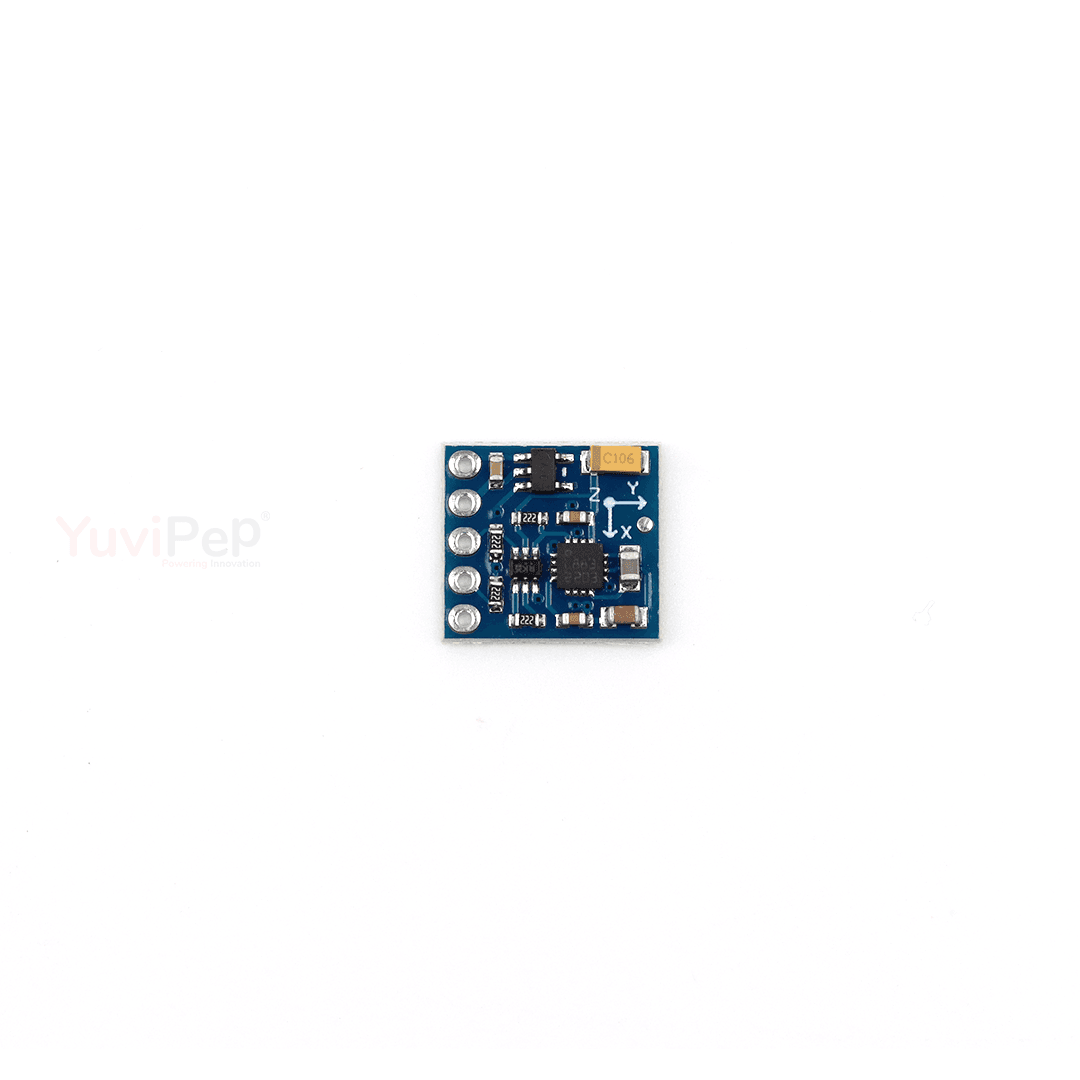

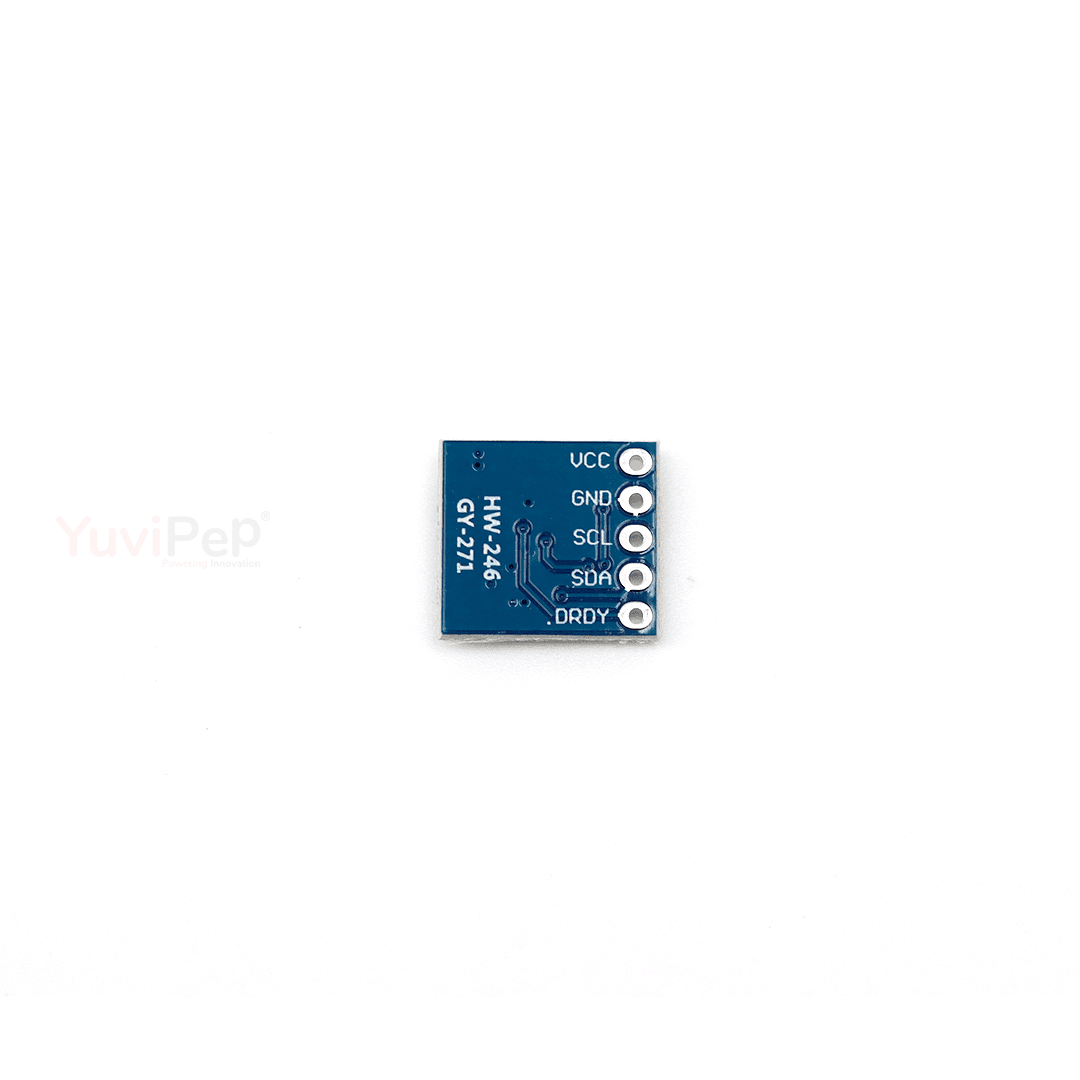

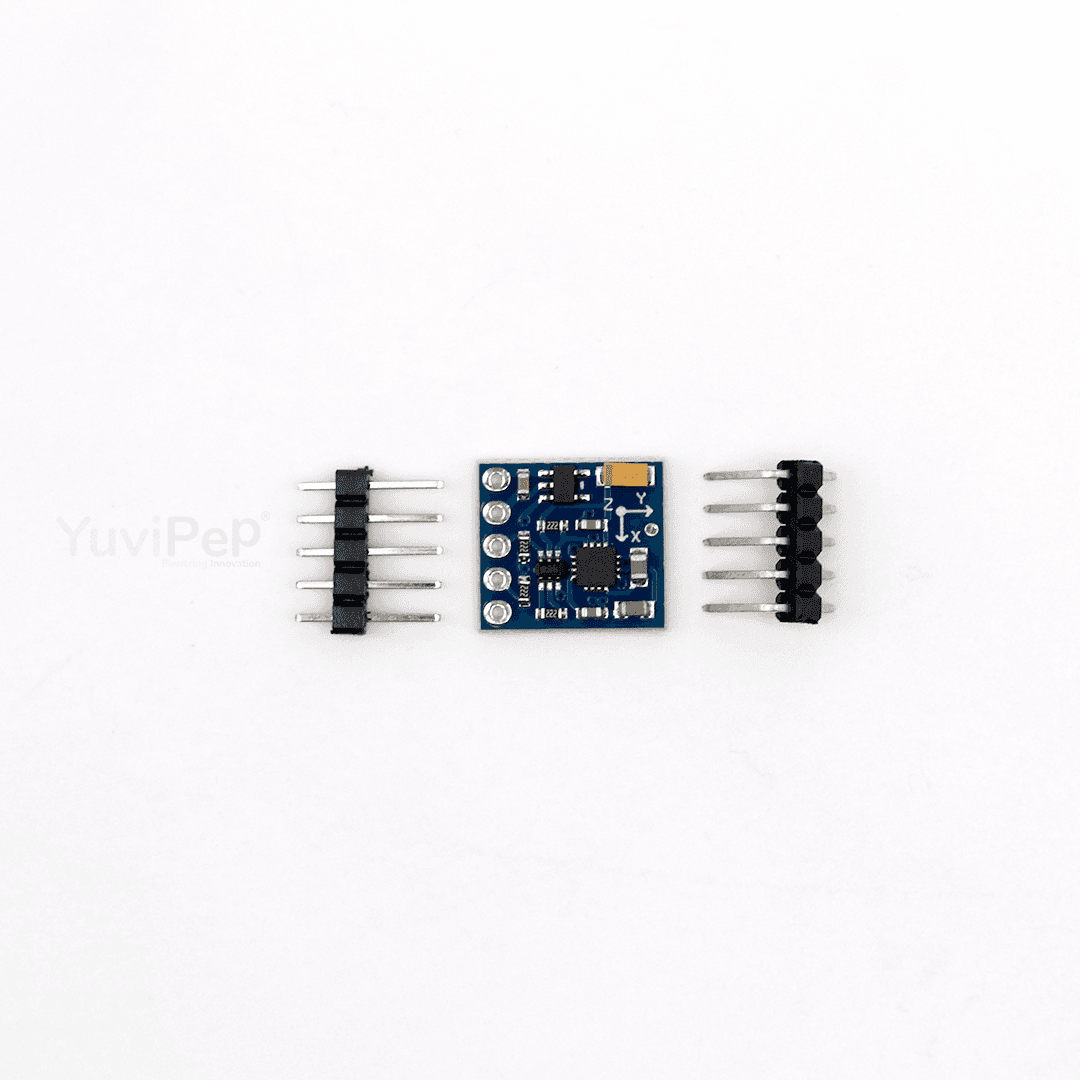

Electronic Compass Module 3 Axis Magnetic Field Sensor (GY-271 HMC5883L)

Key Features

• 1. Magnetometer Sensor (HMC5883L): This sensor is a 3-axis digital magnetometer, meaning it can detect magnetic fields in the X, Y, and Z directions. It provides measurements in microteslas (µT) for each axis of magnetic field strength. The HMC5883L is highly sensitive, with a range typically from ±0.88 to ±8 Gauss (the exact range can vary based on the configuration). 2. Communication Protocol: It typically communicates using I2C protocol, making it easy to integrate with microcontrollers like Arduino, Raspberry Pi, and others. The module usually has an address of 0x1E for I2C communication. 3. Applications: Compass (Heading) Systems: The GY-271 can be used to determine direction and orientation relative to the Earth's magnetic field. 3D Orientation Systems: Combined with other sensors (e.g., accelerometers and gyroscopes), the GY-271 can be part of a complete Inertial Measurement Unit (IMU), giving more accurate orientation data. Navigation Projects: Used in robotic navigation or GPS-based systems where you need to know the orientation of the device. 4. Power Supply: It typically operates on a voltage of 3.3V to 5V, which makes it compatible with most microcontroller platforms. 5. Pinout: The typical pinout includes VCC, GND, SCL (Clock Line), SDA (Data Line), and DRDY (data ready indicator).
